SIM7906A-M2 is the LTE Cat 6 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+. It supports maximum 300Mbps downlink rate and 50Mbps uplink rate.

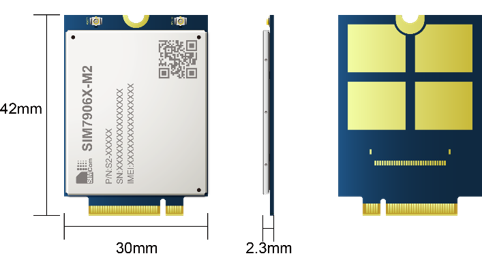

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Part Number | SIM7906A M2 | |
| Manufacturer | SIMCom | |
| Description | SIM7906A-M2 is the LTE Cat 6 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+. It supports maximum 300Mbps downlink rate and 50Mbps uplink rate.! |
|
| Category | IoT Modules | |
| Lead Time | 8 weeks | |
| Country of Origin | ||
| Datasheet | Datasheet | |
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 70° C |
| Ambient Temperature Range Low | -30° C |
| Length | 30 mm |
| Weight | 5.8 g |
| Width | 42 mm |
| Thickness | 2.3 mm |
| Number of Bands | 23 |
| USB Standard | 3.0 |
| Nominal Input Voltage | 3.3 |
| Approvals – Regulatory | FCC, PTCRB, RoHS, REACH |
| Connector Type | M2 |
| Country of Origin | China |
| Max Input Voltage | 4.4 |
| Min Input Voltage | 3.135 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Mount | M2 |
| Data Rate | LTE: 300(DL)/50(UL) Mbps HSPA+: 42Mbps (DL)/11.2(UL) Mbps |
