The SIM7600-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

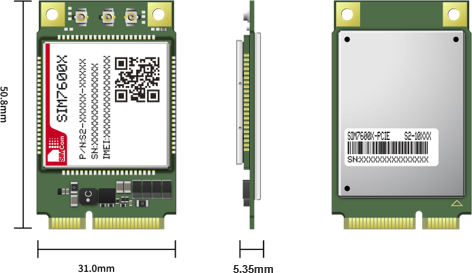

Product Image Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Part Number SIM7600G PCIE
Manufacturer SIMCom
Description

The SIM7600-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.!

Category IoT Modules
Lead Time 8 weeks
Country of Origin
Datasheet Datasheet

Product Attributes

TYPE DESCRIPTION
Ambient Temperature Range High 85° C
Ambient Temperature Range Low -40° C
Length 50.8 mm
Weight <12 g
Width 31 mm
Thickness 5.35 mm
Number of Bands 25
USB Standard 2.0
Current GSM Sleep 2.8 mA GSM Idle 18 mA UMTS Sleep 3.3 mA UMTS Idle 17.5 mA LTE Sleep 2.3 mA LTE Idle 17.5 mA
Nominal Input Voltage 3.3
Approvals - Carrier AT&T, Verizon, T-Mobile, US Cellular, DEUTSCHE TELEKOM, Orange
Approvals – Regulatory CE-RED, FCC, IC, RCM, Telec, Jate, NCC, IMDA, ICASA, CCC, SRRC, Anatel, UKCA, PTCRB, GCF, RoHS, REACH
Connector Type Mini PCIE
Country of Origin China
Max Input Voltage 3.6
Min Input Voltage 3.0
Number of I2C Channels 1
Number of UART Channels 1
Number of USB Channels 1
Mount Mini PCIE
Data Rate LTE: 10(DL)/5(UL) Mbps HSPA+: 42(DL)/5.76(UL) Mbps WCDMA: 384(DL)/384(UL) Kbps GPRS: 236.8(DL)/236.8(UL) Kbps
