The SIM7600-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.

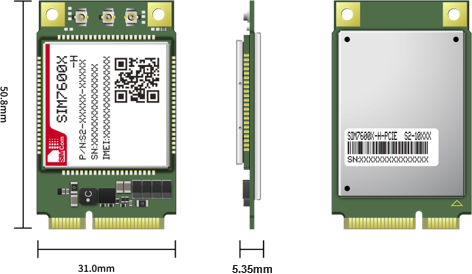

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
| Part Number | SIM7600A-H PCIE | |
| Manufacturer | SIMCom | |
| Description | The SIM7600-H-PCIE series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.! |
|
| Category | IoT Modules | |
| Lead Time | 8 weeks | |
| Country of Origin | ||
| Datasheet | Datasheet | |
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 85° C |
| Ambient Temperature Range Low | -40° C |
| Length | 50.8 mm |
| Weight | <12 g |
| Width | 31 mm |
| Thickness | 5.35 mm |
| Number of Bands | 4 |
| USB Standard | 2.0 |
| Nominal Input Voltage | 3.3 |
| Approvals - Carrier | AT&T |
| Approvals – Regulatory | FCC, PTCRB, IC, RoHS, REACH |
| Connector Type | Mini PCIE |
| Country of Origin | China |
| Max Input Voltage | 3.6 |
| Min Input Voltage | 3.0 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Mount | Mini PCIE |
| Data Rate | LTE: 150(DL)/50(UL) Mbps HSPA+: 42(DL)/5.76(UL) Mbps WCDMA: 384(DL)/384(UL) kbps |
