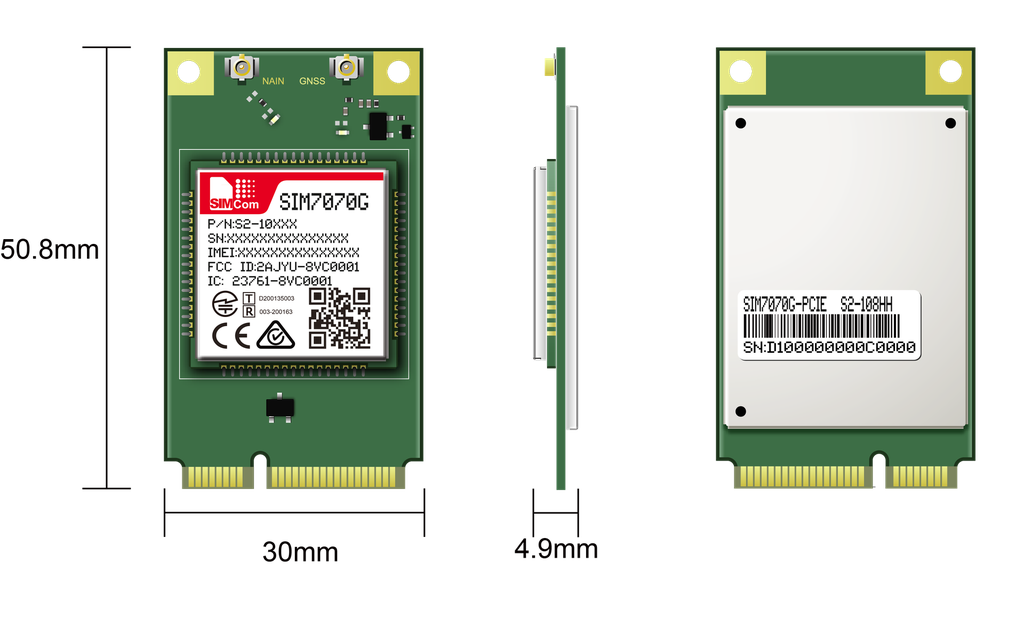

The SIM7070 series is the LPWA module which supports wireless communication modes of Cat- M/Cat-NB/GPRS/EDGE.
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 85° C |
| Ambient Temperature Range Low | -40° C |
| Length | 50.8 mm |
| Weight | 9.4±0.2g |
| Width | 30 mm |
| Thickness | 5.2 mm |
| Number of Bands | 23 |
| USB Standard | 2.0 |
| Current | Sleep 2 mA Idle 15 mA |
| Nominal Input Voltage | 3.8 |
| Approvals - Carrier | AT&T, VERIZON, T-MOBILE US, ROGERS, TELSTRA, VDF, SoftBank, DoCoMo, KDDI* |
| Approvals – Regulatory | FCC, IC, CE, RCM, JATE, TELEC, NCC, ANATEL*, GCF, PTCRB, RoHS, REACH |
| Connector Type | Mini PCIE |
| Country of Origin | China |
| Max Input Voltage | 4.2 |
| Min Input Voltage | 3.3 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Mount | Mini PCIE |
| Data Rate | Cat-M 589(DL)/1119(UL) kbps Cat-NB 127(DL)/158.5(UL) kbps EGPRS 296(DL)/236.7(UL) kbps |
| Number of GPIO | 3.0 |
ADD TO CART
0
On Stock
