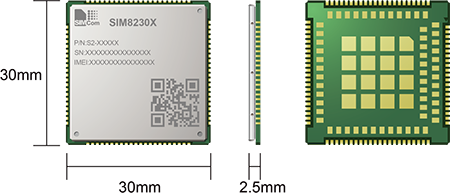

SIM8230 is a Multi-Band 5G NR/LTE-FDD/LTE-TDD module which supports R17 5G SA.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 85° C |
| Ambient Temperature Range Low | -40° C |
| Length | 30 mm |
| Weight | 5.5 g |
| Width | 30 mm |
| Thickness | 2.5 mm |
| Number of Bands | 31 |
| USB Standard | 2.0 |
| Nominal Input Voltage | 3.3 |
| Approvals - Carrier | T-Mobile, Verizon |
| Approvals – Regulatory | CE(RED), GCF, FCC, PRCRB, RoHS, REACH |
| Connector Type | LCC+LGA |
| Country of Origin | China |
| Max Input Voltage | 4.4 |
| Min Input Voltage | 3.8 |
| Number of A/D Converters | 2.0 |
| Number of Analog Inputs | 2.0 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 2 |
| Number of USB Channels | 1 |
| Mount | SMD |
| Data Rate | Sub-6G SA: 220(DL)/100(UL) Mbps LTE: 150(DL)/50(UL) Mbps |
| Number of ADC Channels | 2.0 |
| Number of GPIO | 3.0 |
