The SIM7600-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

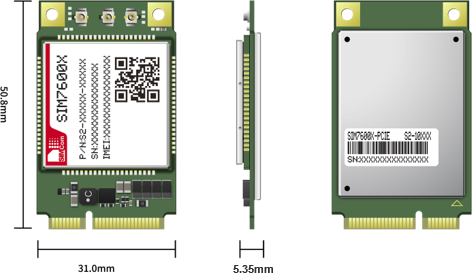

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Part Number | SIM7600NA PCIE | |
Manufacturer | SIMCom | |
Description | The SIM7600-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.! |
|
Category | IoT Modules | |
Lead Time | 8 weeks | |
Country of Origin | ||
Datasheet | Datasheet |
Product Attributes
TYPE | DESCRIPTION |
---|---|
Ambient Temperature Range High | 85° C |
Ambient Temperature Range Low | -40° C |
Length | 50.8 mm |
Weight | <12 g |
Width | 31 mm |
Thickness | 5.35 mm |
Number of Bands | 11 |
USB Standard | 2.0 |
Current | LTE Sleep 2.3 mA LTE Idle 17.5 mA |
Nominal Input Voltage | 3.3 |
Approvals - Carrier | AT&T, Verizon, T-Mobile, US Cellular |
Approvals – Regulatory | FCC, PTCRB, IC, RoHS, REACH |
Connector Type | Mini PCIE |
Country of Origin | China |
Max Input Voltage | 3.6 |
Min Input Voltage | 3.0 |
Number of I2C Channels | 1 |
Number of UART Channels | 1 |
Number of USB Channels | 1 |
Mount | Mini PCIE |
Data Rate | LTE: 10(DL)/5(UL) Mbps |
