The SIM7600-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

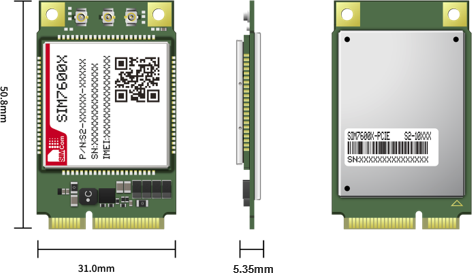

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

Part Number	SIM7600A PCIE
Manufacturer	SIMCom
Description	The SIM7600-PCIE series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.!
Category	IoT Modules
Lead Time	8 weeks
Country of Origin
Datasheet	Datasheet

TYPE	DESCRIPTION
Ambient Temperature Range High	85° C
Ambient Temperature Range Low	-40° C
Length	50.8 mm
Weight	<12 g
Width	31 mm
Thickness	5.35 mm
Number of Bands	4
USB Standard	2.0
Current	GSM Sleep 2.8 mA GSM Idle 18 mA UMTS Sleep 3.3 mA UMTS Idle 17.5 mA LTE Sleep 2.3 mA LTE Idle 17.5 mA
Nominal Input Voltage	3.3
Approvals - Carrier	AT&T, ROGERS
Approvals – Regulatory	FCC, PTCRB, IC, RoHS, REACH
Connector Type	Mini PCIE
Country of Origin	China
Max Input Voltage	3.6
Min Input Voltage	3.0
Number of I2C Channels	1
Number of UART Channels	1
Number of USB Channels	1
Mount	Mini PCIE
Data Rate	LTE: 10(DL)/5(UL) Mbps HSPA+: 42(DL)/5.76(UL) Mbps WCDMA: 384(DL)/384(UL) Kbps
