Alternative for: Quectel BG770AGLAA-N06-SGNSA

This product is currently unavailable in our store. Please take a moment to compare it with the products listed below.
Product Image Product Image
Cost 15.71429 16.875
Mfr Part # SIM7080G BG770AGLAA-N06-SGNSA
Manufacturer SIMCom Quectel
Quantity Available 100.0 0.0

TAKE A LOOK TO THE MOST APROXIMATE PRODUCT

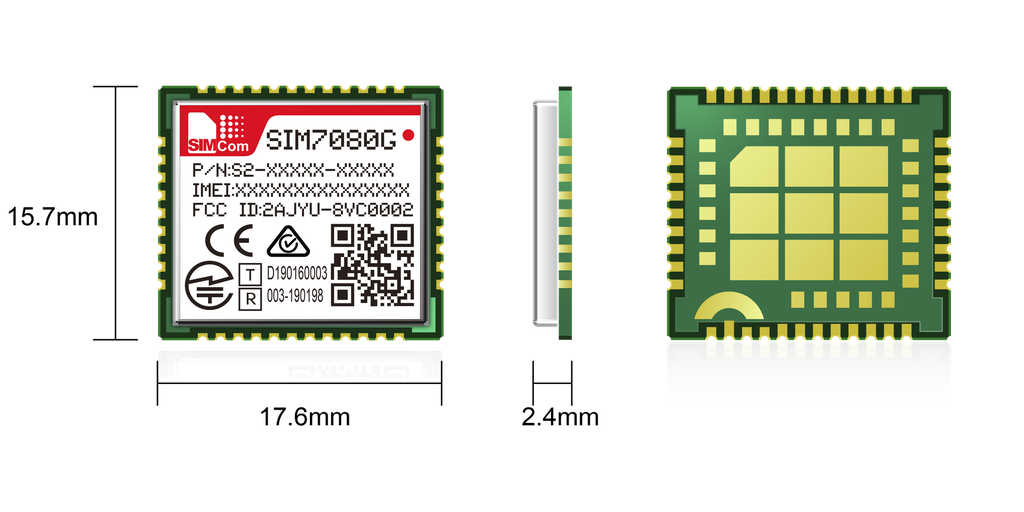

The SIM7080G is Multi-Band CAT-M and NB-IoT module solution

Product Image Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Part Number SIM7080G
Manufacturer SIMCom
Description

CAT M, NB-IOT w/GNSS Data and GNSS not simultaneous 17.6mm x 15.7mm!

Category IoT Modules
Lead Time 8 weeks
Country of Origin china
Datasheet Datasheet

Product Attributes

TYPE DESCRIPTION
Ambient Temperature Range High 85° C
Ambient Temperature Range Low -40° C
Length 17.6 mm
Weight 1.4±0.2g
Width 15.7 mm
Thickness 2.4 mm
Number of Bands 19
USB Standard 2.0
Current PSM: 3.2 µA Sleep 0.6 mA Idle 10 mA
Nominal Input Voltage 3.8
Approvals - Carrier Docomo, KDDI, Softbank, Deutsche Telekom, AT&T, Verizon, T-Mobile, US Cellular
Approvals – Regulatory RoHS, REACH, JATE, Telec, RCM, CE(RED), GCF, FCC, PTCRB, IC
Connector Type LCC + LGA
Country of Origin China
Max Input Voltage 4.8
Min Input Voltage 2.7
Number of A/D Converters 1.0
Number of Analog Inputs 1.0
Number of I2C Channels 1
Number of UART Channels 1 full channel 2 used as UART in DAM applications
Number of USB Channels 1
Mount SMD
Data Rate Cat-M 589(DL)/1119(UL) kbps Cat-NB 136(DL)/150(UL) kbps
Number of ADC Channels 1.0
Number of GPIO 5.0
